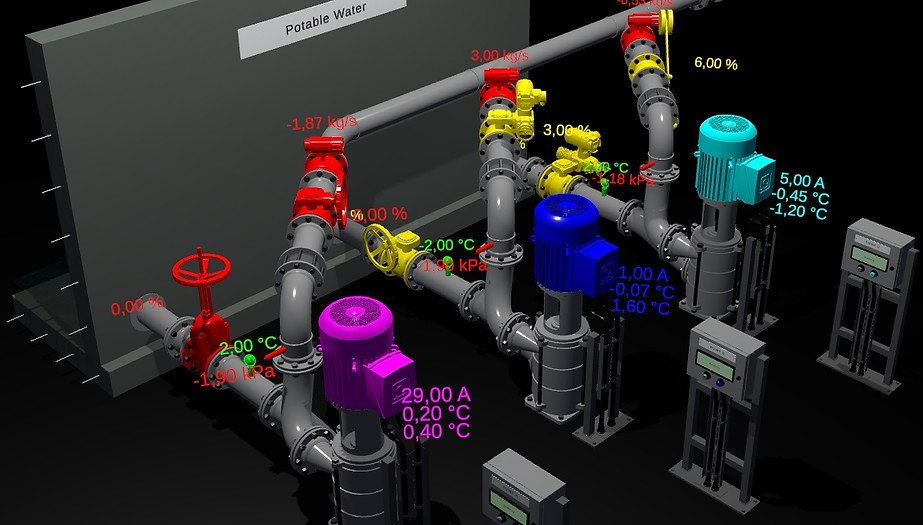

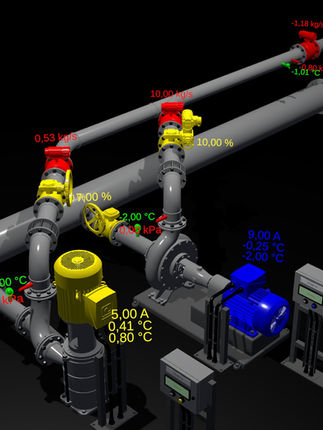

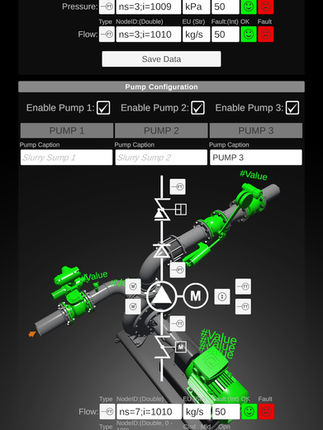

Factory Automation/Process Automation. This is an inexpensive fully rotatable 3d OPC-UA (OPC HMI) monitoring (and control, if enabled) system developed to monitor up to 37 IO over the web or local area network. The user can configure up to (3)three pumps and define instrument limit values and set up to (8)eight device status colors for all dynamic devices. There are 3(three) different types of suction valves and 5(five) different types of discharge valves to choose from.



The user also has the option to configure a TT(Double), PT(Double) and FT(Double) for each pump and can also can configure the motor current and two motor TT's(Double). These TT's can be used for winding or bearing temperatures. The 'LCD'(String) can be used to display PLC error messages on the LCD display on the control panel. The LT(Double) on the sump and the three TT(Double),PT(Double) & FT(Double) on the discharge line can also be enabled and configured as required. The control panel buttons '0'(Stop) and '1'(Start) is enabled by the 'Motor:Cmd' Node.
